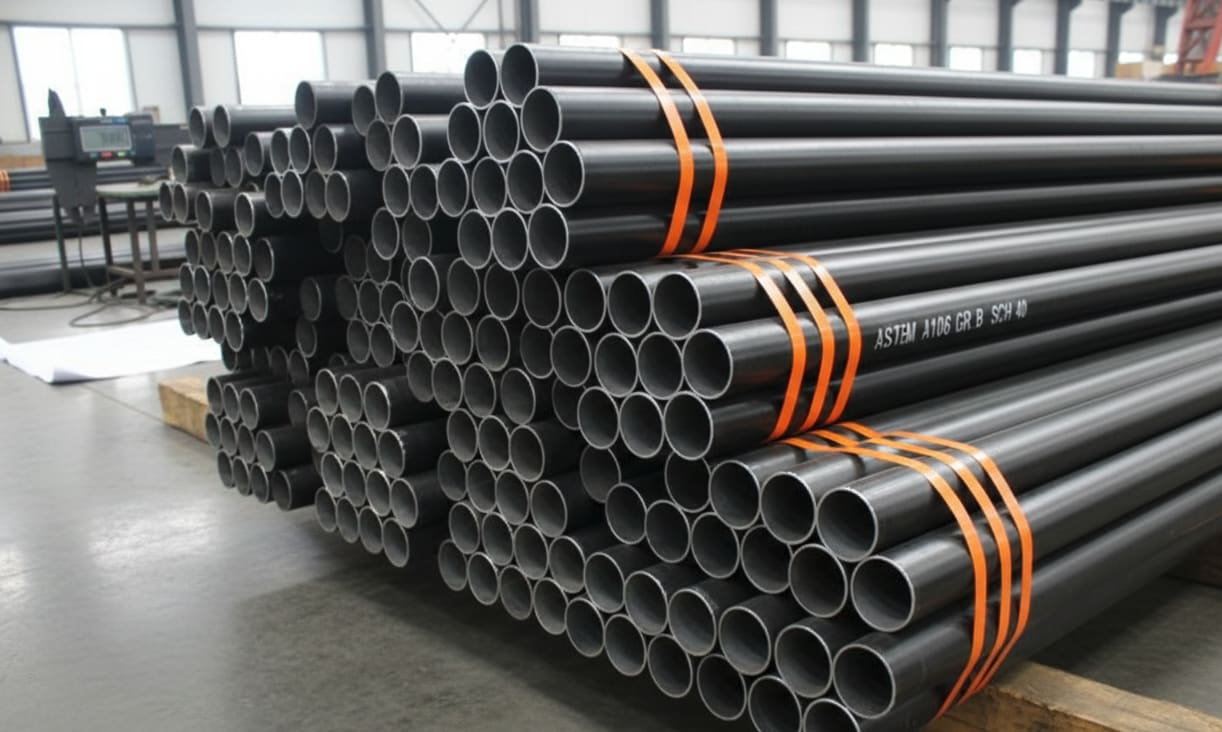

Product Specifications: • Standard Compliance: Dimensional: ASME B36.10M; Material: ASTM A106 Grade B or ASTM A53; Weld Prep: ASME B16.25.
• Classification: Seamless Pressure Pipe; Beveled End (BE).
• Size Range: NPS 1/8″ (DN 6) to NPS 24″ (DN 600).
• Wall Thickness: Designated by Schedule (Sch) numbers: 40, 80, 160, STD, XS, XXS.
• End Configuration: Beveled Ends (BE) with a root face; also available as Plain Ends (PE).
• Lengths: Typically supplied in Single Random Length (SRL: 5–7m) or Double Random Length (DRL: 10–12m).
• Carbon Steel: ASTM A106 Gr. B (High Temp); ASTM A53 Gr. B (General Purpose).
• Low Temp: ASTM A333 Grade 6.
• Alloy Steel: ASTM A335 (P5, P9, P11, P22).
• Uniformity: Greater structural integrity and resistance to internal pressure compared to welded pipe due to the absence of a seam.
• Weldability: Beveled ends ensure a high-quality root pass and consistent fusion during the butt-welding process.
• Service: Ideal for high-pressure, high-temperature, or critical transport of fluids and gases.
