- Panel Dimensions: 3000mm (L) x 2400mm (H).
- Plate Thickness: 100mm.
- Material: High-Tensile S355 Steel.
- Strut Adjustment: 980mm to 2450mm.
- Max Earth Pressure: 40 kN/m².
- Pipe Culvert Height: 1300mm (max pipe diameter below struts).
- Weight: 2,150 kg per box. Lifting: 4-point lifting eyes integrated into plates.
←
Construction, Site Equipment

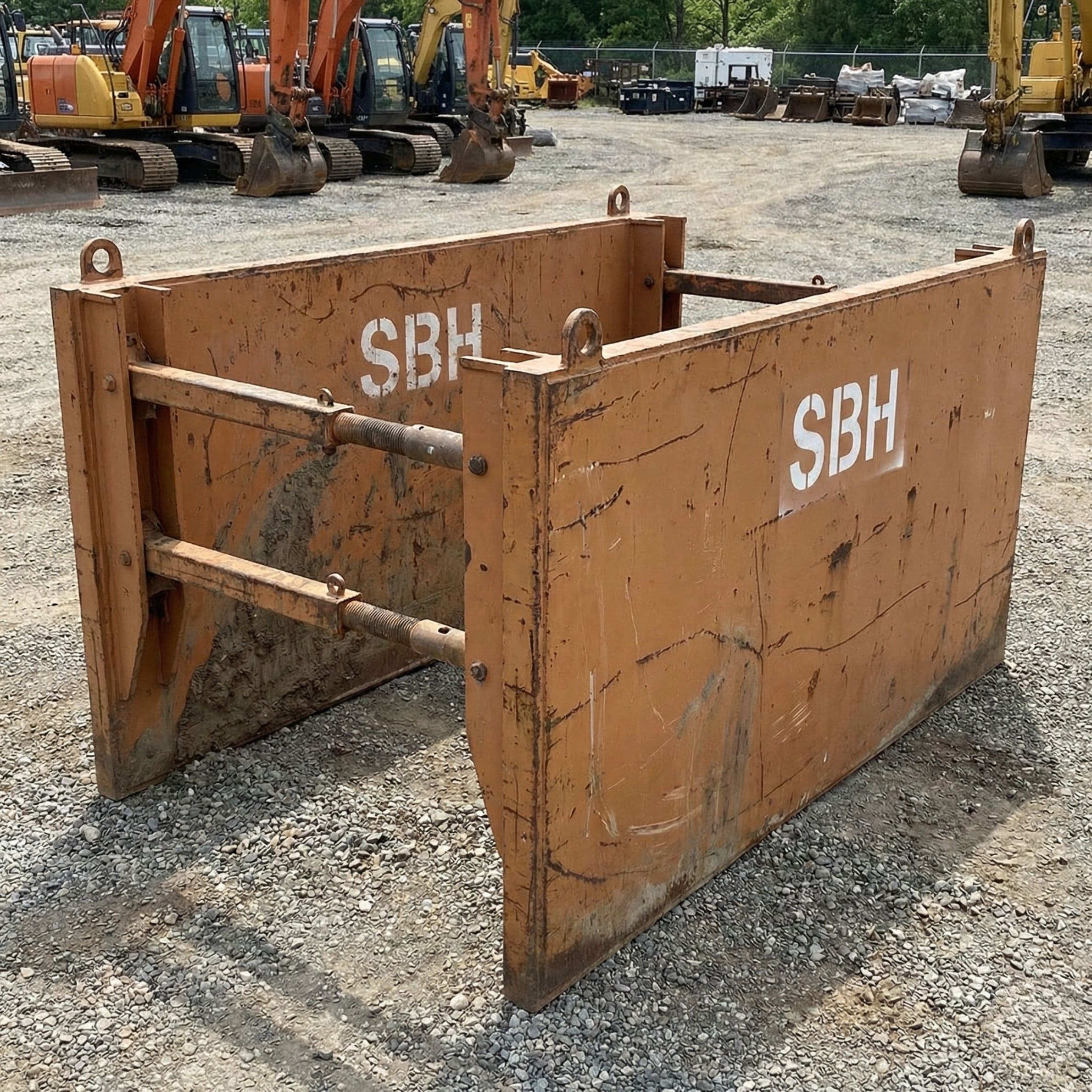

SBH Standard Trench Box System
Contact us for price
A robust steel shoring system designed for utility and pipeline installations in stable to semi-stable ground. It consists of two large steel plates held apart by adjustable struts, creating a safe “cage” for workers. This system is significantly faster to install than traditional timber shoring and can be “dragged” along as the trench progresses.
Ownership Verified
Basic Inspection Report: Available upon request
Maintenance Log Summary: Available upon request
✔ Third-party inspection
✔ Delivery & unloading assistance
✔ Planned maintenance package
-
-
