Product Specification

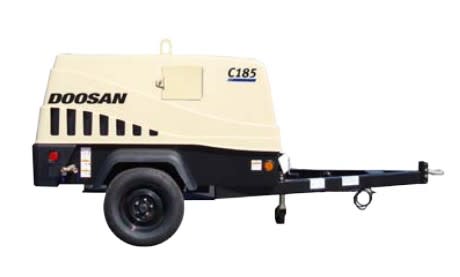

Model: C185WDZ-T4F
COMPRESSOR ROTARY SCREW/SINGLE-STAGE
Free-Air Delivery – cfm (m3/min) 185 (5.2)
Rated Operating Pressure – psig (bar) 100 (6.9)
Pressure Range – psig (bar) 80 – 125 (5.5 – 8.6)
Air Discharge Outlet Size – in (mm) 0.75 (19)
Air Discharge Outlet Quantity 2
Fuel Tank Capacity – gal (L) 21 (79)
ENGINE
Make/Model Deutz
Emissions Tier Level Tier 4 Final (T4F)
Number of Cylinders 4
Displacement – cu in (L) 177 (2.9)
Rated Speed – rpm 2600
Idle Speed – rpm 1700
Bhp @ Rated Speed (kW) 49 (36.6)
Electrical – volts 12
Hours of Operation @ Full Load 7
DIMENSIONS WITH RUNNING GEAR
Length – in (mm) 133.7 (3396)
Width – in (mm) 61.7 (1567)
Height – in (mm) 63 (1600)
Track Width – in (mm) 54 (1372)
Tire Size – in 13
Shipping Weight – w/o fuel – lb (kg) 2065 (937)
Working Weight – w fuel – lb (kg) 2215 (1005)
DIMENSIONS WITHOUT RUNNING GEAR
Length – in (mm) 77.6 (1971)
Width – in (mm) 51.3 (1303)
Height – in (mm) 52.7 (1339)
Shipping Weight – w/o fuel – lb (kg) 1828 (829)
Working Weight – w fuel – lb (kg) 1977 (897)Product Specification
