- Profile: KD6/6 Standard Overlap.
- Section Width: 600mm.
- Section Depth: 60mm.
- Material: Structural Grade S275 Steel.
- Thickness: 3.5mm. Length: 4,000mm (4m).
- Weight: 21.6 kg/m.
- Section Modulus: 80.6 cm³/m.
- Unit: Sold in bundles of 50 sheets (covers 30 linear meters).
←
Construction, Site Equipment

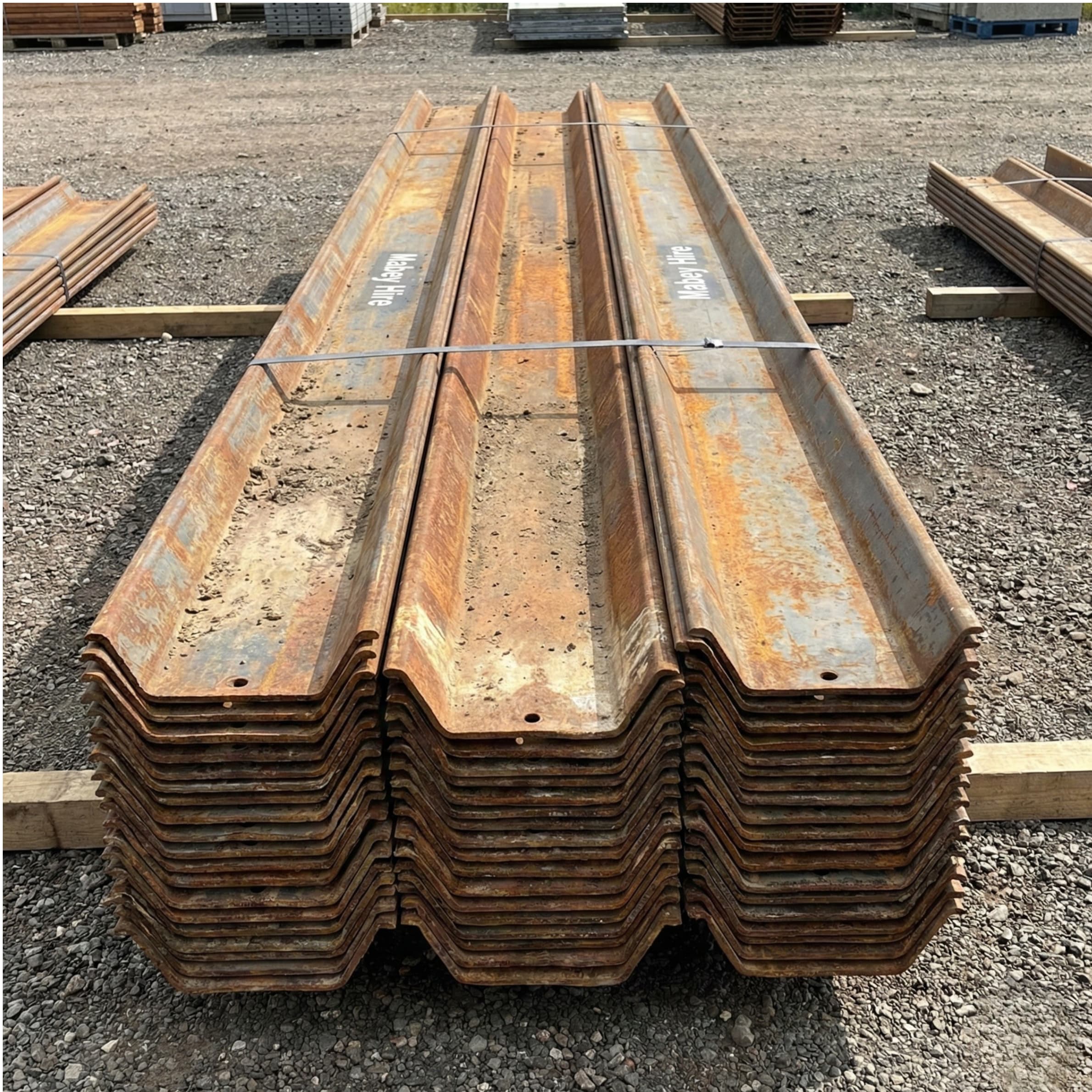

Mabey Hire Steel Trench Sheets
Contact us for price
These interlocking steel sheets provide a continuous shoring wall for trench excavations up to 4m deep. They prevent soil collapse and water ingress, protecting personnel working in utility trenches. The “standard overlap” design allows for easy driving with an excavator-mounted vibratory hammer and simple extraction for reuse.
Ownership Verified
Basic Inspection Report: Available upon request
Maintenance Log Summary: Available upon request
✔ Third-party inspection
✔ Delivery & unloading assistance
✔ Planned maintenance package
