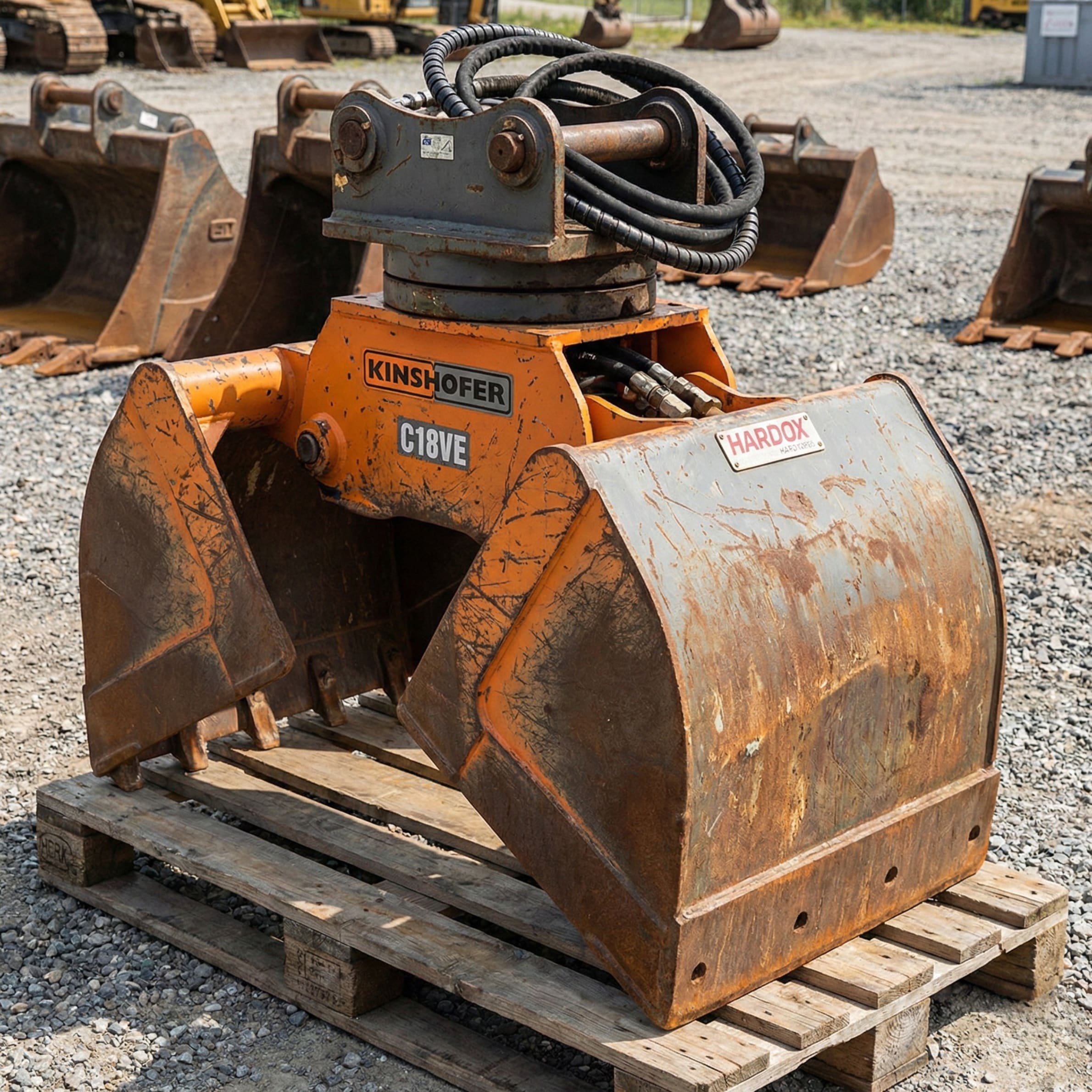

Kinshofer C18VE Clamshell Bucket
,

Kinshofer C18VE Clamshell Bucket

Engineered for deep-shaft excavation and precise material handling in narrow spaces. The synchronized dual-cylinder design ensures even closing pressure, while the 360° hydraulic rotator allows for exact positioning. It is specifically built for handling bulk materials, soil, and sand in urban construction environments where space is limited.

Categories: ,
  • Volume: 1.0 m³ (1000 Liters).
  • Shell Width: 1000mm.
  • Closing Force: 35 kN at 260 bar.
  • Rotation: 360° continuous hydraulic.
  • Material: High-tensile Hardox 400 wear-resistant steel shells.
  • Self-Weight: approx. 850 kg.
  • Max Load: 4,500 kg.
  • Features exchangeable bolt-on teeth and integrated check valve to maintain grip during pressure drops.
