Product Specifications

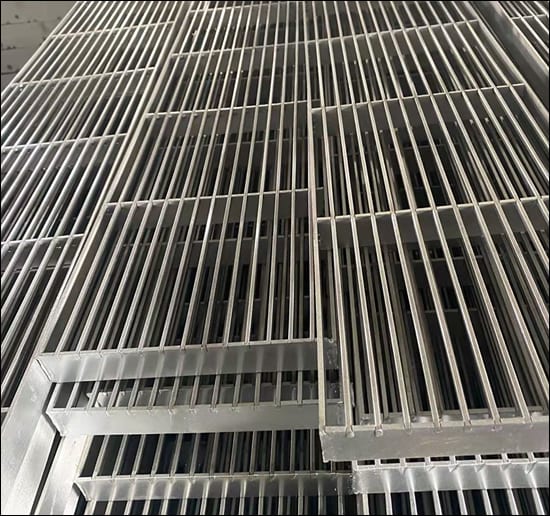

Grating, Hot Dip Galvanized, serrated to BS 4592, Size 19ft x 3ft

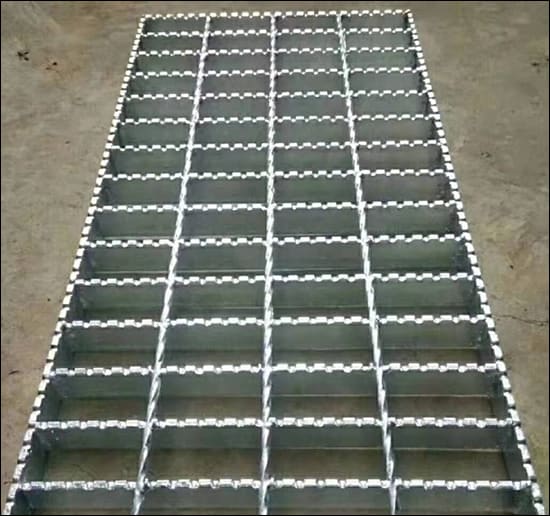

Rectangular pattern with hexagonal or square twisted cross bars.
– Size of bearing bars: 40mm x 5mm serrated.
– Spacing between bearing bars: 30mm, connected together
with 8mm hexagonal twisted rod every 100mm.
– Top surface of bearing bars shall be serrated.
– Grating panels shall be hot dip galvanized of minimum 460GM/M ^ 2.
– Pitch of cross bars: 50mm.
– Grating suitable for Max. SPAN 67″ for 1/4″ deflection under uniform working load of 6.6 KN/M ^ 2.
– The grating bar shall be closed end.
Common grating dimensions: 1″ x 1/8″ x 36″ x 24″
Grating panel size:
3’-4” x 4’-10”
2’-0” x 10’-0”
